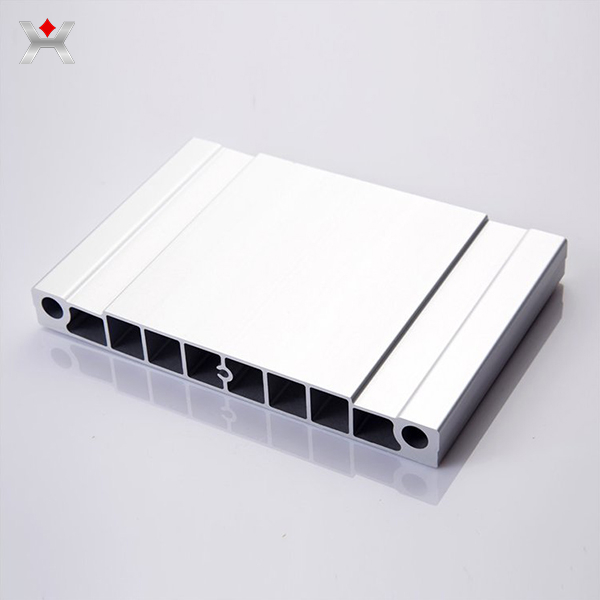

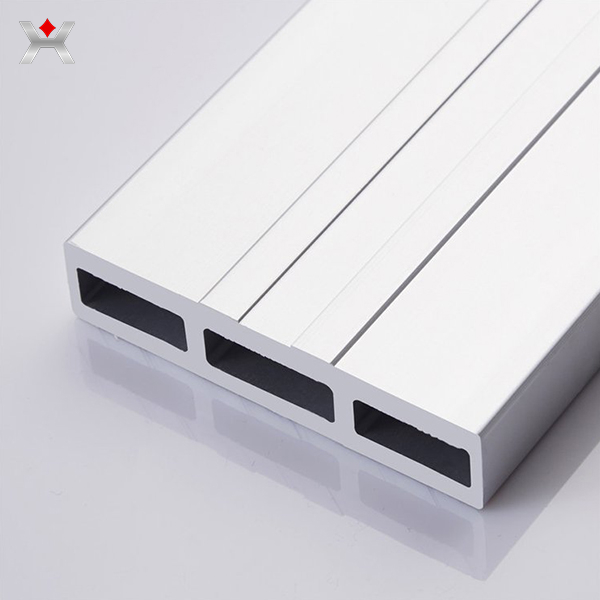

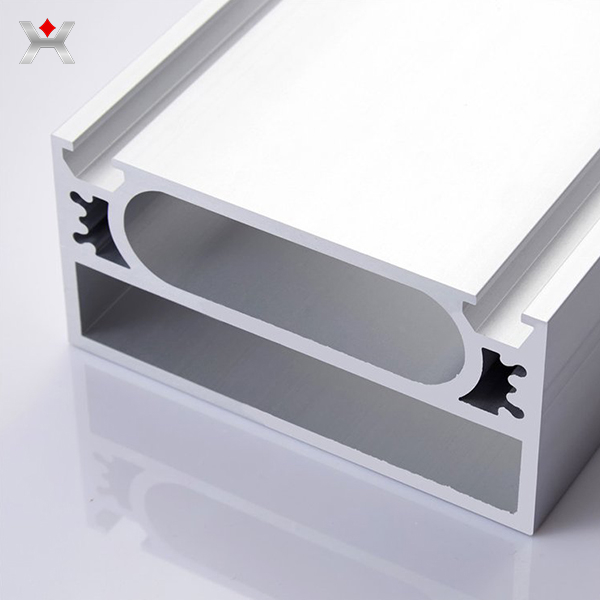

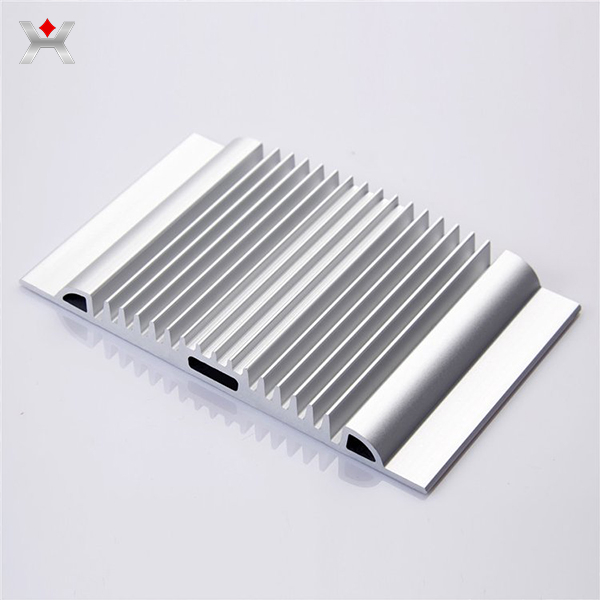

Transportation aluminum profiles are made of high-quality raw material aluminum ingots, with sophisticated production technology, scientific management, and strict quality inspection. Due to its advantages of light weight, good sealing, corrosion resistance, aesthetics, comfort, etc., the aluminum alloy car body manufactured by transportation aluminum profiles has gradually replaced the carbon steel car body and the stainless steel car body in the EMU and urban rail transit vehicles.
Product Name |
Transportation aluminum profiles |
Material |
1000~ 7000 Series, such as 6063/6005/6061/6060/6082/7075, or as customer requestment |
Surface Treatment |
Square, Flat, Round, Hollow, Oval, Triangle, U-profiles, L-profiles,T-profiles, H-profiles,or as customer's requestment. |
Temper |
T3-T8 |
Shape |
Usually square, round and T-shaped, or customized |
Processing |
Punching, milling, cutting, bending |
Length |
1-12m or as required |
Thickness |
0.8mm-30mm |
Anodize Thickness |
Normally anodize thickness is 9-11um. |
Powder Coating Thickness |
Normally powder coating thickness is 60-80um. |
Color |
Silver/white/gold/grey or as customer's requestment |
Application |
Road transport |
Standard |
ASTM, AISI, JIS, ISO, EN, BS, GB, etc. |
Export |
United States, Australia, Brazil, Canada, Peru, Iran, Italy, India, United Kingdom, Arabia, etc. |
Payment Method |
T/T, Western Union, L/C, etc. |
Package |
Standard seaworthy export packing: wooden pallet with plastic protection or as customer's request. |
Pricing Term |
EXW,FOB,CIF,CFR,CNF etc. |
Transportation aluminum profiles have low density, high strength and specific bending stiffness, good ductility, excellent impact resistance, corrosion resistance, wear resistance, high electrical conductivity, high heat transfer, easy surface coloring, excellent production and processing formability and High recycling and reproducibility, etc.
Applications of transportation aluminum profiles in the automotive industry include: bumper anti-collision beams, energy absorbing boxes, door anti-collision beams, instrument panel brackets, front walls, frame main beams, radiators and their brackets, oil pipes, sliding rail elements, thermal the rubber pipe joint of the exchanger is a component with a uniform cross section and a complex shape.
