Product Name |
Steering angle aluminum piece |
Material |
6063 aluminum alloy, etc. |
Color |
Silver, yellow, black, customized. |
Weight(g) |
41.8 |
Angle |
90° |
Surface Treatment |
Mill finish, anodized, powder coating, wood grain transfer, electrophoresis and polishing, etc. |
Size |
30*30mm, customized according to customer requirements. |
Width |
30mm, customized according to customer requirements. |
Hole Size |
Φ6.8, customized according to customer requirements. |
Specification |
Custom made |
Serve |
OEM |
Application |
Installation, assembly and fixing of industrial aluminium profiles for factory equipment and factory automation |
Standard |
ASTM, AISI, JIS, ISO, EN, BS, GB, etc. |
Export |
United States, Australia, Brazil, Canada, Peru, Iran, Italy, India, United Kingdom, Arabia, etc. |
Payment Method |
T/T, Western Union, L/C, etc. |
Package |
Standard seaworthy export packing: wooden pallet with plastic protection or as customer's request. |
Pricing Term |
EXW,FOB,CIF,CFR,CNF etc. |
1. There is no need for secondary drilling, and it can be fixed directly with bolts and nuts, and the assembly and disassembly are simple and convenient.
2. High connection strength and strong use time. Applicable to any aluminum profile without limitation.

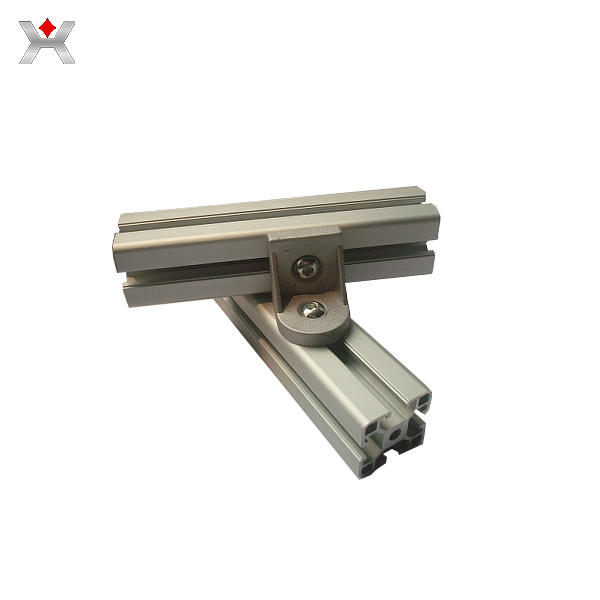

Steering angle aluminum piece has two holes in appearance, which can be connected to two aluminum profiles with bolts and nuts respectively. With the steering angle piece, the angle between the two aluminum profiles can be steered, which is very practical and convenient.
