L-shaped aluminium profile production

FOB price range: 1000-4000
Supply capacity: more than 5000T
From the quantitative: more than 1T
Delivery time: 3-45 days
Port Delivery: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
Description
Description

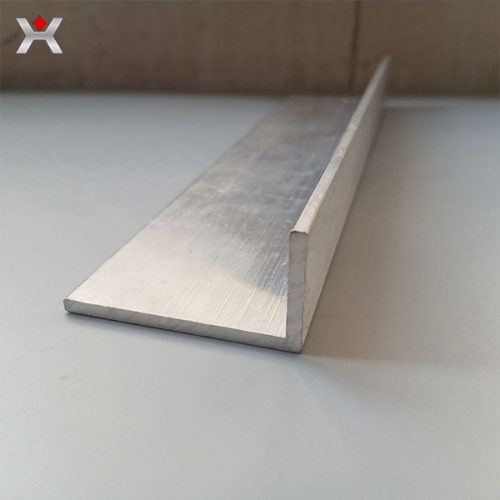

L-shaped aluminium profile is a kind of aluminium profile, L-shaped aluminium profile is mainly used for connecting parts, industrial L-shaped aluminium profile not only has 90 degree angle, but also 45 degree angle and 135 degree angle aluminum. This kind of angle aluminum is made into a finished product after deep processing such as sawing and drilling, which is used to fix the connection between the two profiles.

Product Name

L-shaped aluminium profile

Material

6063, 6061, 6005, 6082, 6060, etc.

Processing

Bending, uncoiling, welding, punching, cutting, etc.

Surface Treatment

Can be customized, such as polished, anodized, electroplated, powder coated, painted, silver matt, sandblasted, PVDF, etc.

Surface Thickness

Anodizing: 7-23 μ, powder coating: 60-120 μ, electrophoretic film: 12-25 μ

Wall Thickness

0.4mm-20mm or customized

Length

3-6 m or customized

Color

Standard: black, silver and grey, can be customized (RAL shades)

Tolerance

±1%

Delivery Time

15-21 days

Standard

ASTM, AISI, JIS, ISO, EN, BS, GB, etc.

Export

United States, Australia, Brazil, Canada, Peru, Iran, Italy, India, United Kingdom, Arabia, etc.

Payment Method

L/C, T/T, Western Union, etc.

Package

Standard seaworthy export packing: wooden pallet with plastic protection or as customer's request.

Pricing Term

EXW,FOB,CIF,CFR,CNF etc.

L-shaped aluminium profile production

Rapid annealing: the heating temperature is 350-410℃; the holding time is between 30-120min depending on the effective thickness of the material; air or water cooling.

High temperature annealing: heating temperature is 350 ~ 500 ℃; when the thickness of the finished product is ≥ 6mm, the holding time is 10 ~ 30min, <6mm, until the heat penetrates; the air is cold.

Low temperature annealing: heating temperature 150 ~ 250 ℃; holding time 2 ~ 3h; air or water cooling.

1. Industrial aluminum profiles: frame structure, load-bearing workbench, closed structure, production line, civil aluminum frame.

2. Aluminum products: power amplifier molding finishing, surface treatment. Aluminum parts in automobiles, motors, elevators, cylinders. Decoration, advertising, displays, light boxes, aluminium products and profiles.

3. Stage and film shape The main aluminum frame shape, L-shaped aluminum profile, chandelier, sound support frame, air box and special activity table.
