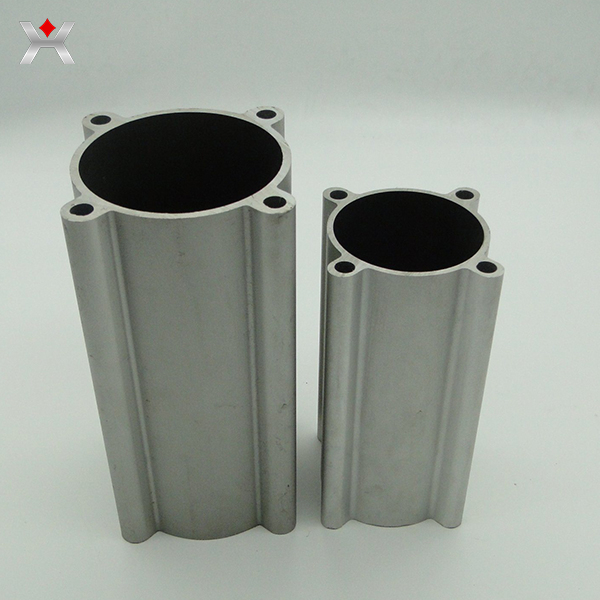

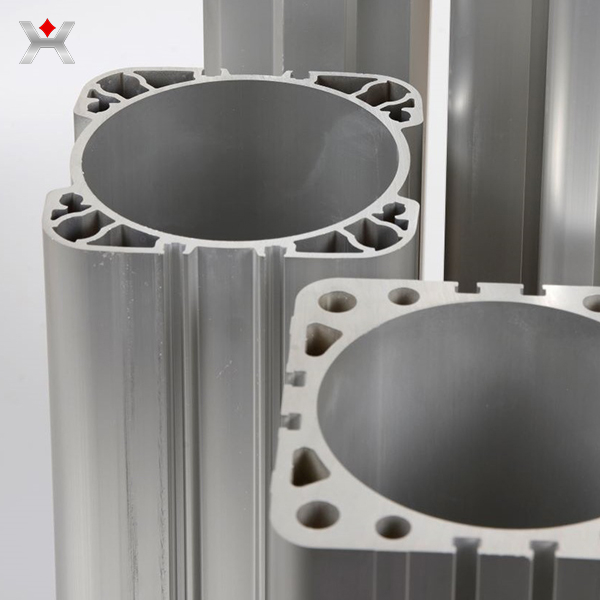

The cylinder is generally made of aluminum or aluminum alloy, and the cylinder block is aluminum profile cylinders. There are also stainless steel or copper, because the compressed air will contain moisture, which may cause the cylinder to rust. Generally, iron is not used.
Product Name |
Aluminum profile cylinders |
Material |
Aluminum alloy 6061-T5, 6063-T5, 6005-T5, 6082-T5, etc. |
Inner Diameter |
Ф16-Ф320 |
Inner Diameter Tolerance |
H9-H11 |
Straightness |
≤1mm/1000mm |
Extrusion Length |
6-12 meters |
Alloy Or Not |
Is Alloy |
Shape |
As per drawing or sample, Square, Round, etc. |
Tempers |
T4, T5, T6 |
Surface Treatment |
Anodizing, coloring oxidation, electrophoresis, spraying (powder spraying), wood grain transfer, etc. |
Oxide Film Thickness |
≥20um |
Powder Coating Thickness |
≥300HV |
Application |
Mainly used for automobile engine, valve, track splicing, etc. |
Standard |
ASTM, AISI, JIS, ISO, EN, BS, GB, etc. |
Export |
United States, Australia, Brazil, Canada, Peru, Iran, Italy, India, United Kingdom, Arabia, etc. |
Payment Method |
T/T, Western Union, L/C, etc. |
Package |
Standard seaworthy export packing: wooden pallet with plastic protection or as customer's request. |
Pricing Term |
EXW,FOB,CIF,CFR,CNF etc. |
1.Aluminum profile cylinders have good casting properties and can be processed into different shapes of aluminum profiles.
2. Good surface treatment performance and bright appearance.
3. It has stable chemical properties, non-magnetic, and can be recycled and reused. It is a benign and recyclable metal material.
4. The elastic coefficient is small, and there is no spark in collision and friction, which is the best in automotive technology.
5. It has good thermal conductivity and electrical conductivity, and has outstanding performance in short-distance power transmission.
6. Compared with other metal materials, aluminum profile cylinders have no metal pollution, no toxicity, and no volatile metals in the surface oxide layer.
