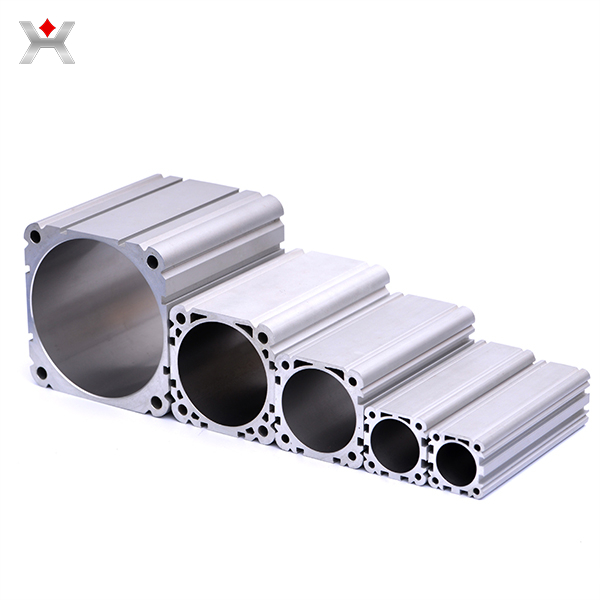

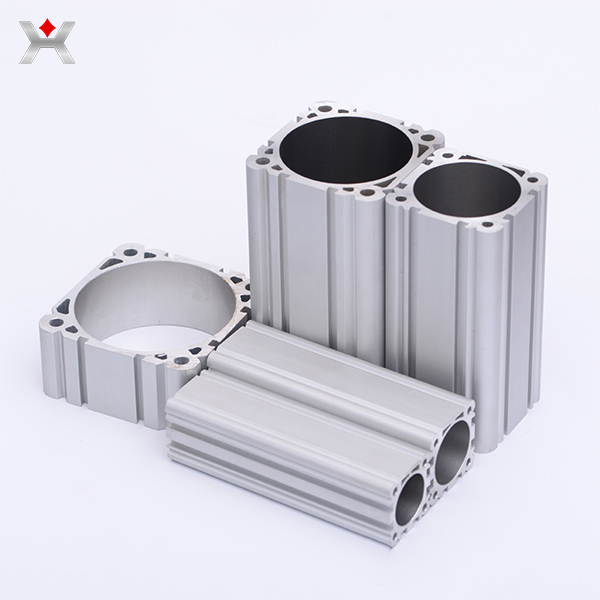

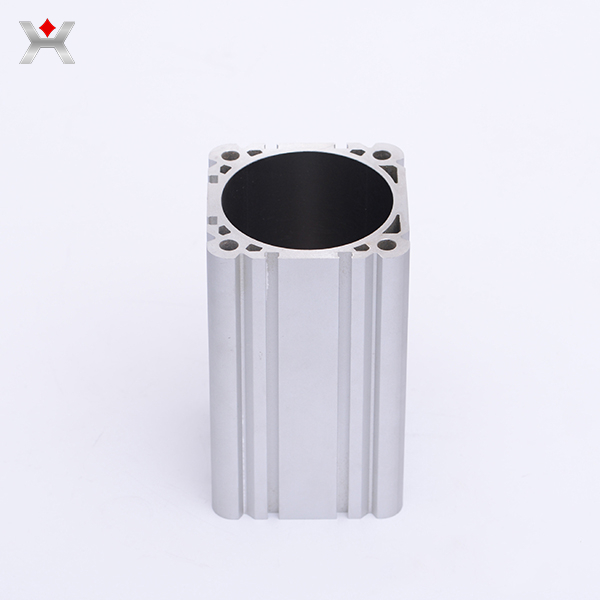

Aluminum profile cylinders are light in weight, can effectively reduce fuel consumption and improve handling performance; good heat dissipation; beautiful appearance; corrosion resistance. The cylinder is a commonly used power element in mechanical equipment. It converts the pressure energy of compressed air into mechanical energy, and the driving mechanism realizes reciprocating linear motion, swinging or rotary motion.
Product Name |
Aluminum profile cylinders |
Material |
Aluminum alloy 6061-T5, 6063-T5, 6005-T5, 6082-T5, etc. |
Inner Diameter |
Ф16-Ф320 |
Inner Diameter Tolerance |
H9-H11 |
Straightness |
≤1mm/1000mm |
Extrusion Length |
6-12 meters |
Alloy Or Not |
Is Alloy |
Shape |
As per drawing or sample, Square, Round, etc. |
Tempers |
T4, T5, T6 |
Surface Treatment |
Anodizing, coloring oxidation, electrophoresis, spraying (powder spraying), wood grain transfer, etc. |
Oxide Film Thickness |
≥20um |
Powder Coating Thickness |
≥300HV |
Application |
Mainly used for automobile engine, valve, track splicing, etc. |
Standard |
ASTM, AISI, JIS, ISO, EN, BS, GB, etc. |
Export |
United States, Australia, Brazil, Canada, Peru, Iran, Italy, India, United Kingdom, Arabia, etc. |
Payment Method |
T/T, Western Union, L/C, etc. |
Package |
Standard seaworthy export packing: wooden pallet with plastic protection or as customer's request. |
Pricing Term |
EXW,FOB,CIF,CFR,CNF etc. |
1. Single-acting cylinder: there is only one end of the piston rod. Air is supplied from one side of the piston to generate air pressure, and the air pressure pushes the piston to generate thrust to extend and return by spring or its own weight.
2. Double-acting cylinder: alternately supply air from both sides of the piston to output force in one or two directions.
3. Diaphragm type cylinder: the diaphragm is used instead of the piston, the force is only output in one direction, and the spring is used for reset. It has good sealing performance but short stroke.
Aluminum profile cylinders are mainly used for automobile engines, valves, track splicing, and have stable performance.
