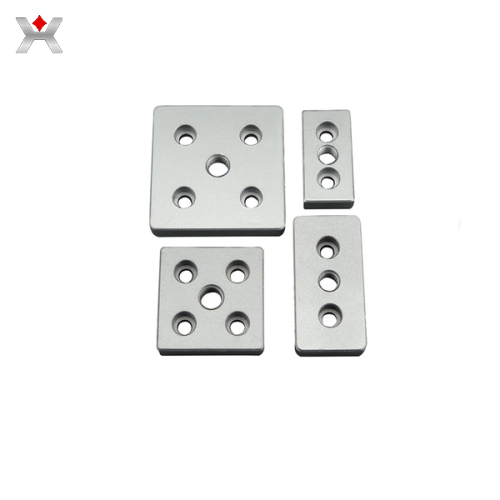

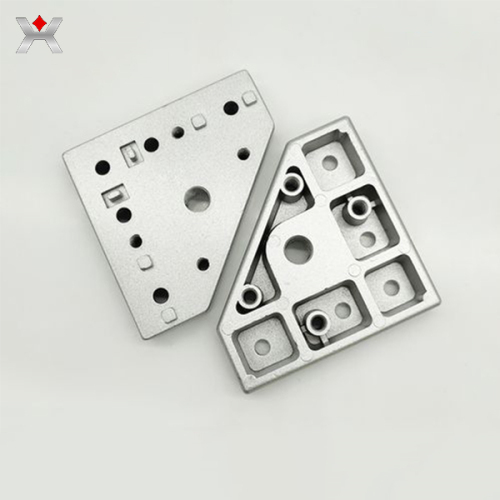

The aluminum angle plate is mainly used for the fastening connection between the aluminum profile and the supporting accessories, and plays a fixed role. It can enhance the yield strength and tensile strength between the end surface structure of the aluminum profile and the support or hoisting fasteners. Avoid rotation of the connecting plate to ensure stable performance of the connecting point.
Product Name |
Aluminum angle plate |
Material |
6063, 6061, 6005, 6082, 6060 and other aluminum alloys |
Unit Weight |
0.125kg/PCS |
Specification |
57*57*57mm |
Feet Width |
6.5 MM |
Color |
Green, red, blue, silver, black, yellow or can be customized. |
Size |
Standard or on demand |
Shape |
Square, round, angle, etc. |
Serve |
OEM |
Craftsmanship |
Die casting |
Application |
Aluminum profile connection |
Standard |
ASTM, AISI, JIS, ISO, EN, BS, GB, etc. |
Export |
United States, Australia, Brazil, Canada, Peru, Iran, Italy, India, United Kingdom, Arabia, etc. |
Payment Method |
T/T, Western Union, L/C, etc. |
Package |
Standard seaworthy export packing: wooden pallet with plastic protection or as customer's request. |
Pricing Term |
EXW,FOB,CIF,CFR,CNF etc. |
1. Advantages of aluminum angle plate connection: no need to drill holes, just fix it with bolts and nuts, and the assembly and disassembly are simple and convenient. High connection strength, strong and long-term use. Applicable to every aluminum profile without limitation.
2. Disadvantages of aluminum angle plate connection: not beautiful in appearance. Panels cannot be installed on frames connected using corner fittings, as they will take up space in the slot. The scope of use is limited, and it is generally used on shelves and brackets.
Aluminum angle plate is mainly used for rectangular and large-sized porous profiles, and the aluminum angle plate can play a transitional role at this time. That is to say, the aluminum angle plate can be fixed on the end face of the profile first, and then the feet or casters can be fixed on the aluminum angle plate. The threaded hole of the aluminum angle plate should be determined according to the hoof. So whether you are buying or customizing, you must first confirm the size of the hoof or caster used, and then choose the aluminum angle plate.
