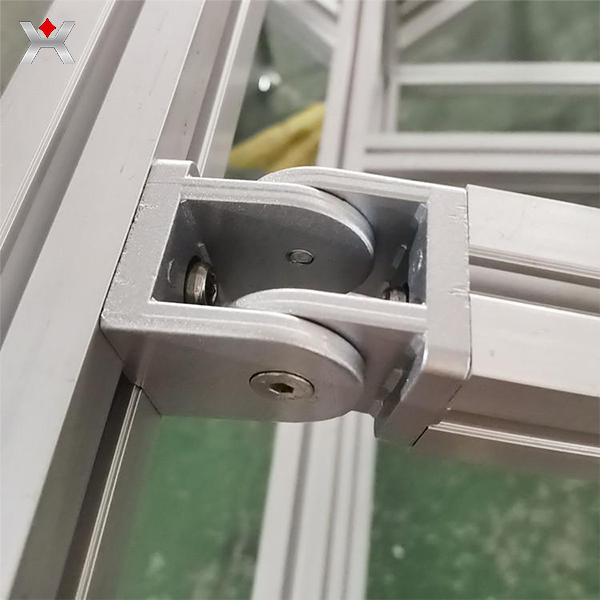

Aluminum alloy living hinge is a connection method that can realize angle adjustment. It is suitable for any angle connection between two profiles. After installation, the angle adjustment and fixation can be realized by adjusting the middle fastening parts of the aluminum alloy living hinge. The adjustment range is 180 degrees; Aluminum alloy living hinge intermediate fasteners can be replaced by adjustable wrenches, so that the installation angle of the profiles can be adjusted at any time later.
Product Name |
Aluminum alloy living hinge |
Material |
T3 - T8 6063 aluminium alloy etc. |
Surface Treatment |
Can be customized, such as mill finished, anodized, electroplating, powder coated, painted, silver matt, sand blasted, PVDF etc. |
Aluminium Profile Size |
15/20/30/40/45/50/60/80/90/100/160 series etc. |
Color |
Standard: black, silver and grey. Can be customized (RAL color numbers). |
Deep processing |
Cutting size, drilling holes, adding mounting bracket, flanged side panels, etc. |
Unit Weight |
0.36kg/PCS |
Custom Processing |
Yes |
Application |
Aluminium Profile Links, Steering Links |
Standard |
ASTM, AISI, JIS, ISO, EN, BS, GB, etc. |
Export |
United States, Australia, Brazil, Canada, Peru, Iran, Italy, India, United Kingdom, Arabia, etc. |
Payment Method |
T/T, Western Union, L/C, etc. |
Package |
Standard seaworthy export packing: wooden pallet with plastic protection or as customer's request. |
Pricing Term |
EXW,FOB,CIF,CFR,CNF etc. |
When assembling finished products, use aluminum profile accessories to connect, no welding, simple and environmentally friendly installation.

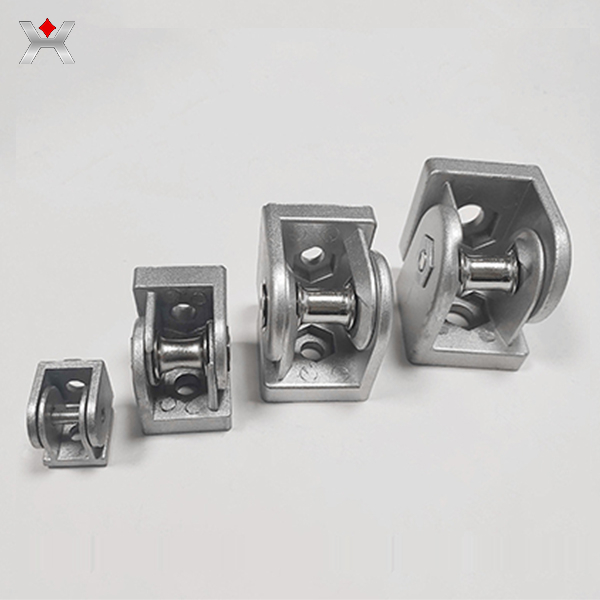

Aluminum alloy living hinge is mainly suitable for movable connection between two industrial aluminum profiles, its rotation range is 180 degrees, and it has various connection methods.
